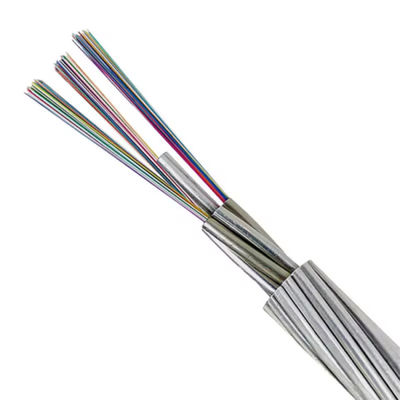

OPGW Cable Overview
Key Features & Advantages
-
Superior Protection: Stainless steel tube with water-blocking compounds shields fibers from moisture and stress.
-
High Strength: Compact, durable design resists tension and harsh environments.
-
Excellent Electrical Performance: Minimizes power grid interference during faults.
-
Easy Installation: Compatible with standard ground wire setups for direct replacement.
-
Dual Function: Provides grounding and optical communication simultaneously.
-
Wide Application: Ideal for power transmission lines, substations, and smart grids.
Main Functions
OPGW cables serve power communication systems, supporting relay protection, automatic control, and data transmission. Installed along high-voltage lines, they integrate optical communication and grounding in one system.

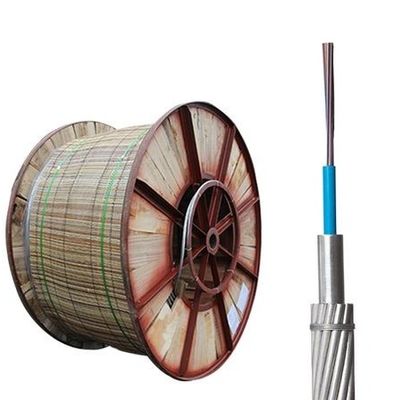

Structure
Made of two or three layers of aluminum-clad steel or aluminum alloy wires, OPGW is designed for the mechanical and structural demands of transmission lines.
Fiber Specifications
-
Fiber types: G652D, G655C, G657A1, 50/125, 62.5/125, OM3, OM4
-
Fiber count: up to 96 cores
Electrical & Application Range
-
For power lines ≤110KV and UHV systems
-
Suitable for new overhead transmission lines
-
Conducts short-circuit currents and provides lightning protection
Typical Design

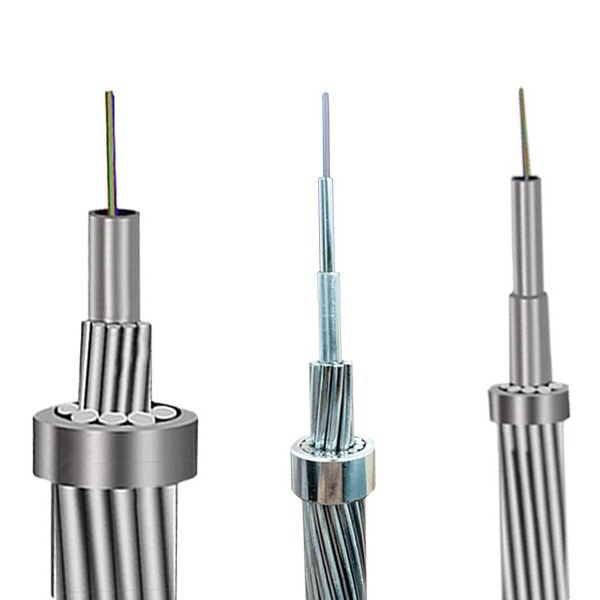

Central aluminum-covered stainless steel tube ensures strong mechanical performance, excellent fiber protection, and long-term reliability.
Parameter
OPGW with PBT Aluminum Tube
| Specification |
Fiber Count |
Diameter(mm) |
Weight (kg/km) |
RTS(KN) |
Short Circuit(KA2s) |
| |
|
|
|
|
|
| OPGW-113(87.9;176.9) |
48 |
14.8 |
600 |
87.9 |
176.9 |
| OPGW-70(81; 41) |
24 |
12 |
500 |
81 |
41 |
| OPGW-66(79;36) |
36 |
11.8 |
484 |
79 |
36 |
| OPGW-77(72;36) |
36 |
12.7 |
503 |
72 |
67 |
OPGW Typical Designs of Stranded Stainless Steel Tube
Typical design for Double Layer:
| Specification |
Fiber Count |
Diameter(mm) |
Weight (kg/km) |
RTS(KN) |
Short Circuit (KA2s) |
| OPGW-89[55.4;62.9] |
24 |
12.6 |
381 |
55.4 |
62.9 |
| OPGW-110[90.0;86.9] |
24 |
14 |
600 |
90 |
86.9 |
| OPGW-104[64.6;85.6] |
28 |
13.6 |
441 |
64.6 |
85.6 |
| OPGW-127[79.0;129.5] |
36 |
15 |
537 |
79 |
129.5 |
| OPGW-137[85.0;148.5] |
36 |
15.6 |
575 |
85 |
148.5 |
| OPGW-145[98.6;162.3] |
48 |
16 |
719 |
98.6 |
162.3 |
Typical design for Three Layer:
| Specification |
Fiber Count |
Diameter(mm) |
Weight (kg/km) |
RTS(KN) |
Short Circuit (KA2s) |
| OPGW-232[343.0;191.4] |
28 |
20.15 |
1696 |
343 |
191.4 |
| OPGW-254[116.5;554.6] |
36 |
21 |
889 |
116.5 |
554.6 |
| OPGW-347[366.9;687.7] |
48 |
24.7 |
2157 |
366.9 |
687.7 |
| OPGW-282[358.7;372.1] |
96 |
22.5 |
1938 |
358.7 |
372.1 |
OPGW Typical Designs of Central AL-covered Stainless Steel Tube
Typical Design for Single Layer
| Specification |
Fiber Count |
Diameter(mm) |
Weight (kg/km) |
RTS(KN) |
Short Circuit(KA2s) |
| OPGW-80(82.3;46.8) |
24 |
11.9 |
504 |
82.3 |
46.8 |
| OPGW-70(54.0;8.4) |
24 |
11 |
432 |
70.1 |
33.9 |
| OPGW-80(84.6;46.7) |
48 |
12.1 |
514 |
84.6 |
46.7 |
Typical Design for Double Layer
| Specification |
Fiber Count |
Diameter(mm) |
Weight (kg/km) |
RTS(KN) |
Short Circuit(KA2s) |
| OPGW-143(87.9;176.9) |
36 |
15.9 |
617 |
87.9 |
176.9 |
OPGW Typical Designs of Central Stainless Steel Loose Tube
Typical design for Single Layer:
| Specification |
Fiber Count |
Diameter (mm) |
Weight (kg/km) |
RTS (KN) |
Short Circuit (KA2s) |
| OPGW-32(40.6;4.7) |
12 |
7.8 |
243 |
40.6 |
4.7 |
| OPGW-42(54.0;8.4) |
24 |
9 |
313 |
54 |
8.4 |
| OPGW-42(43.5;10.6) |
24 |
9 |
284 |
43.5 |
10.6 |
| OPGW-54(55.9;17.5) |
36 |
10.2 |
394 |
67.8 |
13.9 |
| OPGW-61(73.7;175) |
48 |
10.8 |
438 |
73.7 |
17.5 |
| OPGW-61(55.1;24.5) |
48 |
10.8 |
358 |
55.1 |
24.5 |
| OPGW-68(80.8;21.7) |
54 |
11.4 |
485 |
80.8 |
21.7 |
| OPGW-75(54.5;41.7) |
60 |
12 |
459 |
63 |
36.3 |
| OPGW-76(54.5;41.7) |
60 |
12 |
385 |
54.5 |
41.7 |
Typical design for Double Layer:
| Specification |
Fiber Count |
Diameter (mm) |
Weight (kg/km) |
RTS (KN) |
Short Circuit (KA2s) |
| OPGW-96(121.7;42.2) |
12 |
13 |
671 |
121.7 |
42.2 |
| OPGW-127(141.0;87.9) |
24 |
15 |
825 |
141 |
87.9 |
| OPGW-127(77.8;128.0) |
24 |
15 |
547 |
77.8 |
128 |
| OPGW-145(121.0;132.2) |
28 |
16 |
857 |
121 |
132.2 |
| OPGW-163(138.2;183.6) |
36 |
17 |
910 |
138.2 |
186.3 |
| OPGW-163(99.9;213.7) |
36 |
17 |
694 |
99.9 |
213.7 |
| OPGW-183(109.7;268.7) |
48 |
18 |
775 |
109.7 |
268.7 |
| OPGW-183(118.4;261.6) |
48 |
18 |
895 |
118.4 |
261.6 |
