GJFJH GJFJV 12 Core Indoor Distribution Fiber Optic Cable LSZH Singlemode

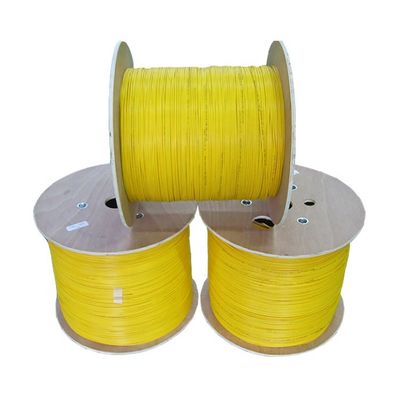

न्यूनतम आदेश मात्रा :	1000 मीटर	पैकेजिंग विवरण :	लकड़ी का ड्रम
प्रसव के समय :	2-4 दिन	भुगतान शर्तें :	वेस्टर्न यूनियन, मनीग्राम, टी/टी, एल/सी
आपूर्ति की क्षमता :	100 किमी प्रति 2 दिन

उत्पत्ति के प्लेस:	चीन	ब्रांड नाम:	Jiqian/Customize/ OEM
प्रमाणन:	ISO9001 ROHS CE-EMC FCC SDOC	मॉडल संख्या:	Gjfjv

विस्तार जानकारी
फाइबर प्रकार:	OM3/G652D/G657A1/G655	OEM:	उपलब्ध
परिचालन तापमान:	-20 ~ 70 डिग्री सेल्सियस	केंद्रीय शक्ति सदस्य:	अरामिद यार्न/केवलर यार्न
सामग्री::	PVC/LSZH	फाइबर गिनती:	12 24 48 96 कोर
फाइबर ब्रांड:	YOFC/FIBERHOME/FUJIKURA/CORNING	आवेदन:	दूरसंचार/डेटा केंद्र/ftth
प्रमुखता देना:	12 core indoor fiber optic cable , LSZH singlemode fiber cable , indoor distribution fiber optic cable

उत्पाद विवरण

Indoor 12 Core Multimode Distribution Tight-Buffered Fiber Optic Cable (GJFJH / GJFJV)

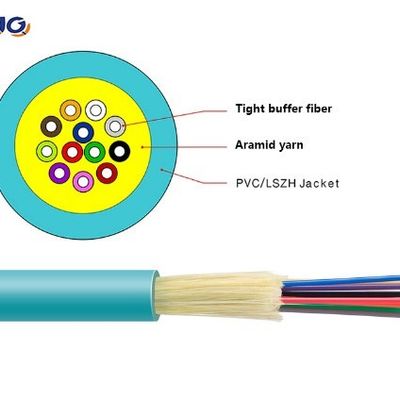

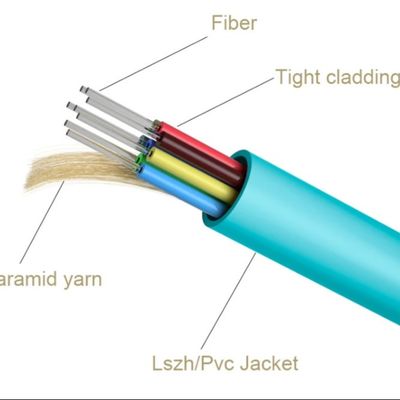

GJFJV indoor distribution cable uses 900μm flame-retardant tight-buffered fibers as the optical transmission medium. Each fiber is reinforced with a layer of aramid yarn for added tensile strength and then jacketed with either PVC or LSZH, depending on installation requirements.

The tight-buffer fibers are produced using high-precision buffering technology, available in 600μm or 900μm diameters. High-quality optical fibers, specialized production equipment, and strict process control ensure excellent mechanical stability and reliable transmission performance.

Features

Excellent mechanical and environmental performance
Flame-retardant design meets industry standards
Reliable mechanical strength for indoor/outdoor use
Soft, flexible, and easy to splice
High-capacity data transmission

Technical Data

No. of cable		8	12	24	36	48
Fiber Model		OM3
Tight lines	Material	PVC/LSZH
	Thickness(±0.03)mm	0.32
	Diameter(±0.06)mm	0.9
Center Strength Member	Material	FRP
Center Strength Member	Diameter(±0.1)mm	—	—	—	0.5	0.5
Strength Member	Material	Aramid Yarn
Inner Sheath	Material	PVC/LSZH
	Diameter(±0.1)mm	—	—	—	0.8	0.8
	Colour	Aqua
Outer Sheath	Material	PVC
	Thickness(±0.1)mm	0.9	1.0	1.0	1.5	1.5
	Colour	Aqua
Cable Diameter(±0.2)mm		5.8	6.2	8.5	15.1	15.1
Cable Wetght(±5)kg/km		31	41	60	238	235

Attenuation	850nm	dB/km	≤2.5
	1300nm		≤0.7
Bandwidth	850nm	MHz.km	≥3500
	1300nm		≥500
Allowable Tensile Strength	Short Term	N	660	660	660	1320	1320
	Long Term		200	200	200	660	660
Allowable Crush Resistance	Short Term	N/100mm	1000	1000	1000	1500	1500
	Long Term		200	200	200	300	300
Min. bending radius	Without Tension		10.0×Cable-φ
	Under Maximum Tension		20.0×Cable-φ
Temperature range (℃)	Installation		-20~+60
	Transport&Storage		-40~+70
	Operation		-40~+70
