ADSS All Dielectric Self Supporting Fiber Optic Cable Max 96 Core Single Jacket

Product Description

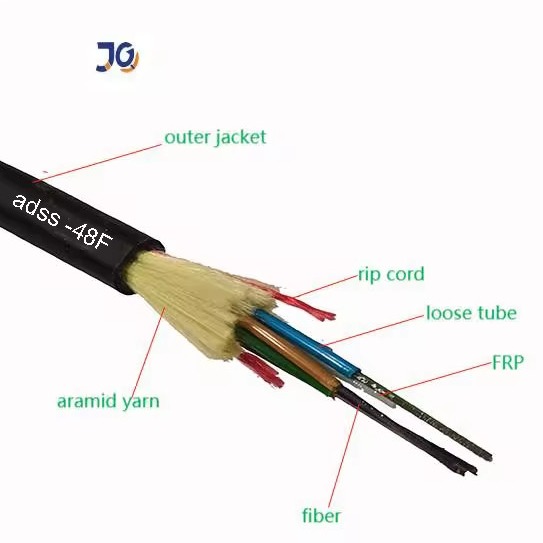

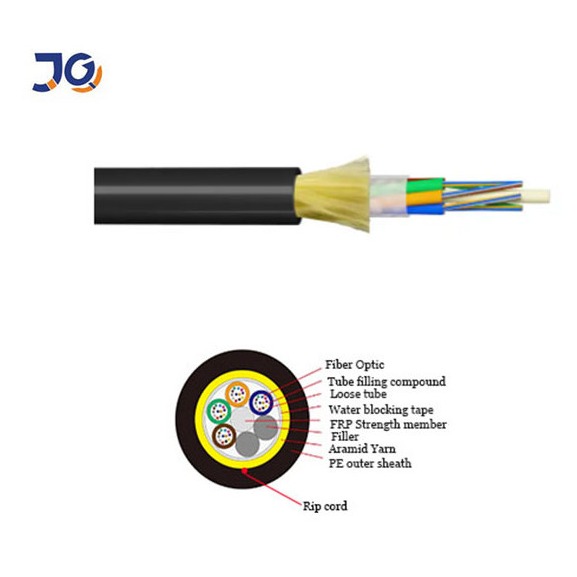

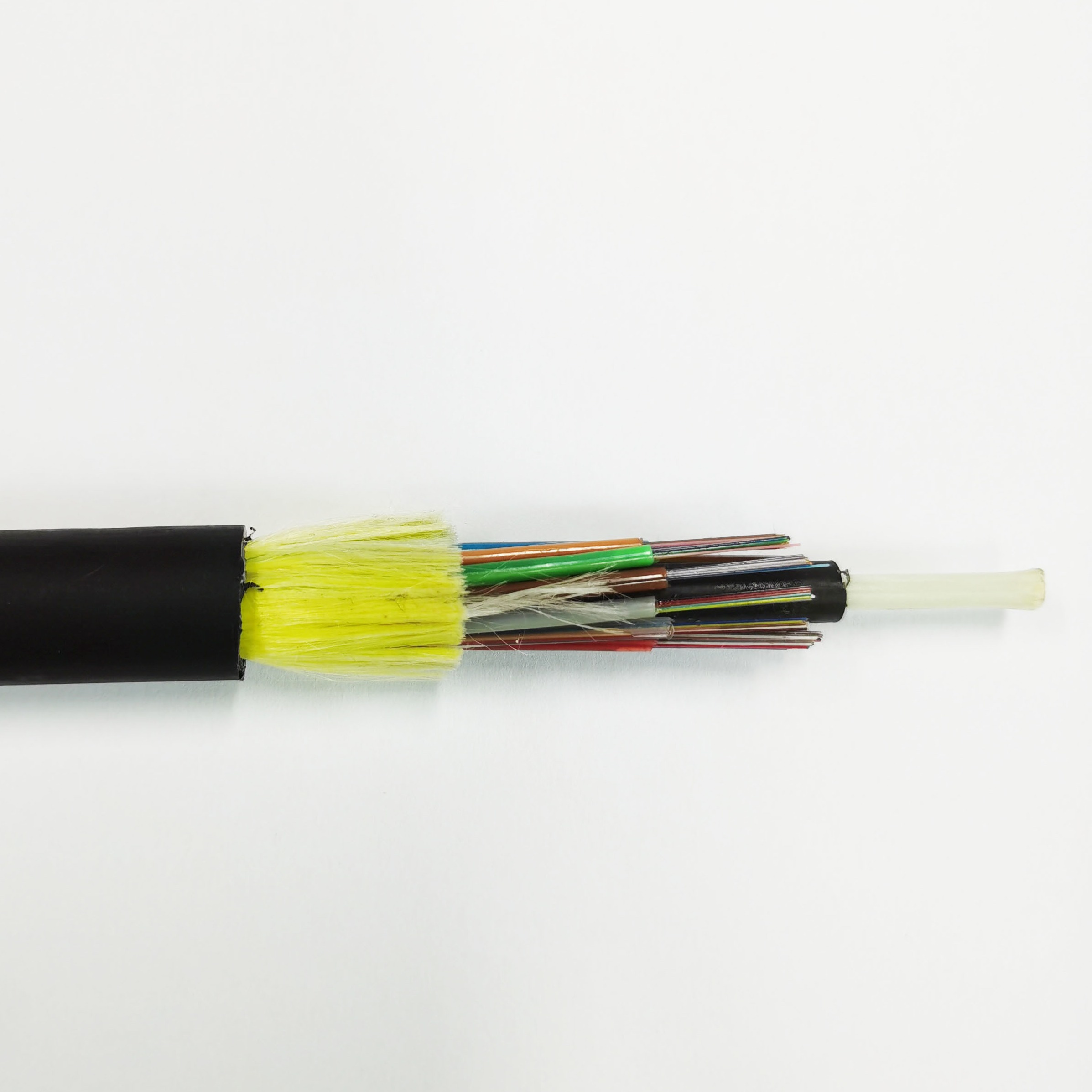

The ADSS cable is designed using a loose tube stranded configuration. Each optical fiber, with a 250μm diameter, is placed within a tube made of high-modulus plastic, filled with a water-resistant compound for protection. These tubes and fillers are then arranged around a central FRP (Fiber Reinforced Plastic) strength member, forming a compact and circular cable core. Next, a thin PE (polyethylene) inner sheath is added, followed by a layer of aramid yarns, which serve as the strength member. Finally, the entire assembly is encased in an outer sheath made of either PE or AT (anti-tracking) material.

Features:

This cable offers excellent mechanical and thermal performance. Its lightweight design and small diameter help reduce the impact of ice, wind, and weight on towers and support structures. Additionally, the inclusion of aramid yarn enhances the cable's tensile strength. With a maximum span length exceeding 1000 meters, it is ideal for large-scale applications.

Applications:

The self-support aerial method makes it easy to set up long-distance telecom or LAN networks in high-voltage areas. This technique is highly effective, allowing users to access telecom networks despite the challenging environment. It offers a fast and cost-efficient installation process.

The method is reliable, ensuring a stable, uninterrupted connection that can provide long-term service to users.

Customization:

Support and Services:

ADSS Fiber Optic Cable provides extensive technical support to assist customers with installation, operation, and maintenance.

We offer both online and phone support to address any questions or issues related to the cable. Our technicians are available 24/7 to provide troubleshooting assistance.

Additionally, we offer on-site installation and maintenance services for customers who require hands-on support. Our expert team is well-versed in fiber optics and ready to help in any way needed.

For more details on our technical support and services, feel free to reach out at your convenience.

Packing and Shipping:

ADSS Fiber Optic Cable Packaging and Shipping:

ADSS fiber optic cables are packaged and shipped in bundles of varying lengths, depending on the customer's preference. The cables are securely fastened together to prevent tangling and fraying, and each bundle is carefully wrapped in a protective plastic film. The bundles are then packed in cardboard boxes, which are labeled with the product information and shipping address. The boxes are then sealed with durable tape and shipped via ground or air freight, depending on the customer's needs.

FAQ:

Q1: What is the Brand Name and Model Number of ADSS Fiber Optic Cable?
A1: The Brand Name is JQ and the Model Number is ADSS.

Q2: Where is it manufactured?
A2: ADSS Fiber Optic Cable is manufactured in Guangzhou, China.

Q3: What is the transmission speed of ADSS Fiber Optic Cable?
A3: ADSS Fiber Optic Cable supports up to 10 Gbps transmission speed.

Q4: What is the range of ADSS Fiber Optic Cable?
A4: The range of ADSS Fiber Optic Cable is up to 80km.

Q5: What is the core diameter of ADSS Fiber Optic Cable?
A5: The core diameter of ADSS Fiber Optic Cable is 0.9mm.
