GCYFY Micro Duct Air Blown Fiber Optic Cable 24 48 96 Core Lightweight High Density Fiber Cable
GCYFY Micro Duct Air Blown Fiber Optic Cable 24 48 96 Core Lightweight High Density Fiber Cable GCYFY Micro Duct Air Blown Fiber Optic Cable 24 48 96 Core Lightweight High Density Fiber Cable GCYFY Micro Duct Air Blown Fiber Optic Cable 24 48 96 Core Lightweight High Density Fiber Cable
अब से संपर्क करें

GCYFY Micro Duct Air Blown Fiber Optic Cable 24 48 96 Core Lightweight High Density Fiber Cable

न्यूनतम आदेश मात्रा : 1 किमी पैकेजिंग विवरण : लकड़ी का ड्रम
प्रसव के समय : 5-8 कार्य दिवस भुगतान शर्तें : एल/सी, टी/टी, वेस्टर्न यूनियन
आपूर्ति की क्षमता : 30 किमी प्रति दिन
उत्पत्ति के प्लेस: गुआंगज़ौ, चीन ब्रांड नाम: JQ/OEM/Customize
प्रमाणन: ISO9001 ROHS CE-EMC FCC SDOC मॉडल संख्या: जीसीवाईएफवाई/जीसीवाईएफटीवाई

विस्तार जानकारी
फाइबर गिनती: 4-144CORES फाइबर प्रकार: एकल मोड/बहु मोड
जैकेट: पीई/पीवीसी/LSZH रंग: काला
प्रोडक्ट का नाम: हवा से उड़ने वाली माइक्रो केबल मॉडल संख्या: Gcyfy
लंबाई: 2 किमी या अनुकूलित लंबाई संरचना: माइक्रो केबल
प्रमुखता देना:

Micro duct fiber optic cable

,

Air blown fiber cable 96 core

,

High density outdoor fiber cable

उत्पाद विवरण

24 48 96 Core GCYFY Air Blown Fiber Micro Cable

Features

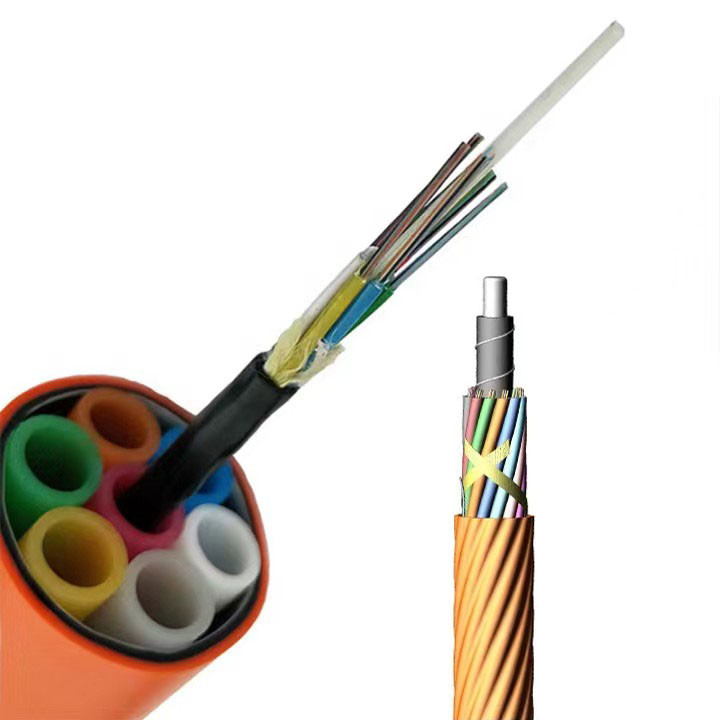

GCYFY air-blown micro cable uses a non-metallic, no-armor design with loose-tube stranding. It can be pulled or air-blown into pre-installed microducts, maximizing duct utilization and allowing fast, scalable network expansion.



Applications
Ideal for FTTH feeder and drop segments, connecting branch points to access points by air-blown installation. Also suitable for backbone, metro, and access networks.



Product Description

  1. Model: GCYFY

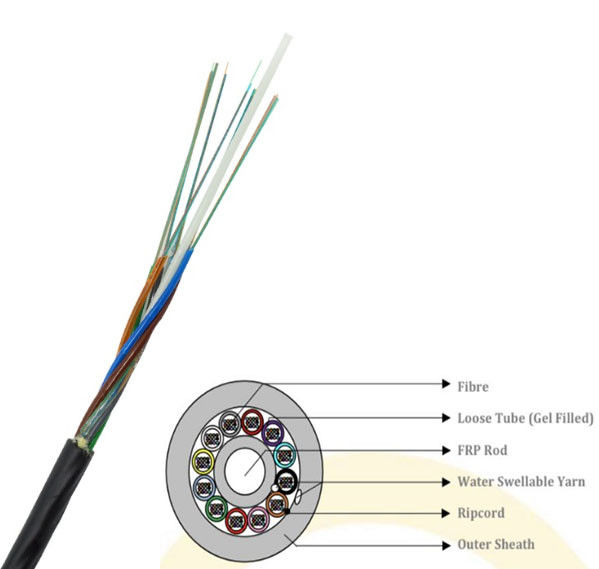

  2. Cable Cross-section Available





Optical Characteristics

Item Specification
Fiber type G.652D
Attenuation
@ 1310 nm ≤0.36 dB/km
@ 1383 nm ≤0.35 dB/km
@ 1550 nm ≤0.22 dB/km
@ 1625 nm ≤ 0.30 dB/km
Cable Cut-off Wavelength(λcc) ≤1260 nm
Zero Dispersion Wavelength(nm) 1300 ~ 1324 nm
Zero Dispersion Slope ≤0.092 ps/(nm2.km)
Chromatic Dispersion
@ 1288 ~ 1339 nm ≤3.5 ps/(nm. km)
@ 1550 nm ≤18 ps/(nm. km)
@ 1625 nm ≤22 ps/(nm. km)
PMDQ ≤0.2 ps/km1/2
Mode Field Diameter @ 1310 nm 9.2±0.4 um
Core Concentricity Error ≤0.6 um
Cladding Diameter 125.0±0.7 um
Cladding Non-circularity ≤1.0%
Coating Diameter 245±10 um
Proof Test 100 kpsi (=0.69 Gpa), 1%



GCYFY Micro Duct Air Blown Fiber Optic Cable 24 48 96 Core Lightweight High Density Fiber Cable 0



Fiber & Tube Color


GCYFY Micro Duct Air Blown Fiber Optic Cable 24 48 96 Core Lightweight High Density Fiber Cable 1

GCYFY Micro Duct Air Blown Fiber Optic Cable 24 48 96 Core Lightweight High Density Fiber Cable 2

Environmental Characteristics

• Transport/storage temperature: -40℃ to +70℃



Cable Parameters



Cores



Cores/tube



FRP diameter (mm)



Sheath thickness (mm)

Approx. overall diameter

(mm)

Approx.

weight (kg/km)
12 12 1.5 0.5±0.1 5.6 24
24 12 1.5 0.5±0.1 5.6 24
48 12 1.5 0.5±0.1 5.6 24
72 12 1.5 0.5±0.1 5.6 24
96 12 2.5 0.5±0.1 6.6 38

GCYFY Micro Duct Air Blown Fiber Optic Cable 24 48 96 Core Lightweight High Density Fiber Cable 3



Delivery Length

• Standard length: 4,000m; other lengths are also available.

GCYFY Micro Duct Air Blown Fiber Optic Cable 24 48 96 Core Lightweight High Density Fiber Cable 4

GCYFY Micro Duct Air Blown Fiber Optic Cable 24 48 96 Core Lightweight High Density Fiber Cable 5

GCYFY Micro Duct Air Blown Fiber Optic Cable 24 48 96 Core Lightweight High Density Fiber Cable 6

GCYFY Micro Duct Air Blown Fiber Optic Cable 24 48 96 Core Lightweight High Density Fiber Cable 7

Welcome to your Inquiry Welcome to visit our factory!
