| न्यूनतम आदेश मात्रा : | 10 किमी | पैकेजिंग विवरण : | लकड़ी का ड्रम |
|---|---|---|---|
| प्रसव के समय : | 8 दिन | भुगतान शर्तें : | एल/सी, टी/टी, वेस्टर्न यूनियन |
| आपूर्ति की क्षमता : | प्रतिदिन 300 किमी |
| उत्पत्ति के प्लेस: | चीन | ब्रांड नाम: | JQ/ Customized |
|---|---|---|---|
| प्रमाणन: | ISO9001, FCC, ROHS/CCC/FCC | मॉडल संख्या: | GYFTY-24F |
|
विस्तार जानकारी |
|||
| फाइबर ब्रांड: | वाईओएफसी/फाइबरहोम/कॉर्निंग | रंग: | काला या नारंगी या अनुकूलित |
|---|---|---|---|
| जैकेट मेटारियल: | पीई, एचडीपीई / एलएसझेडएच | ताकत सदस्य: | एफआरपी (पीई के साथ यदि आवश्यक हो तो) |
| फाइबर गिनती: | 4-288 करोड़ | इंस्टालेशन: | ओवरहेड और डक्ट |
| ड्रम लंबाई: | 5 किमी या अनुकूलित | प्रोडक्ट का नाम: | GYFTY आउटडोर फाइबर केबल |
| प्रमुखता देना: | 12 core duct fiber optic cable,48 core underground fiber optic cable,self supporting outdoor fiber cable |
||

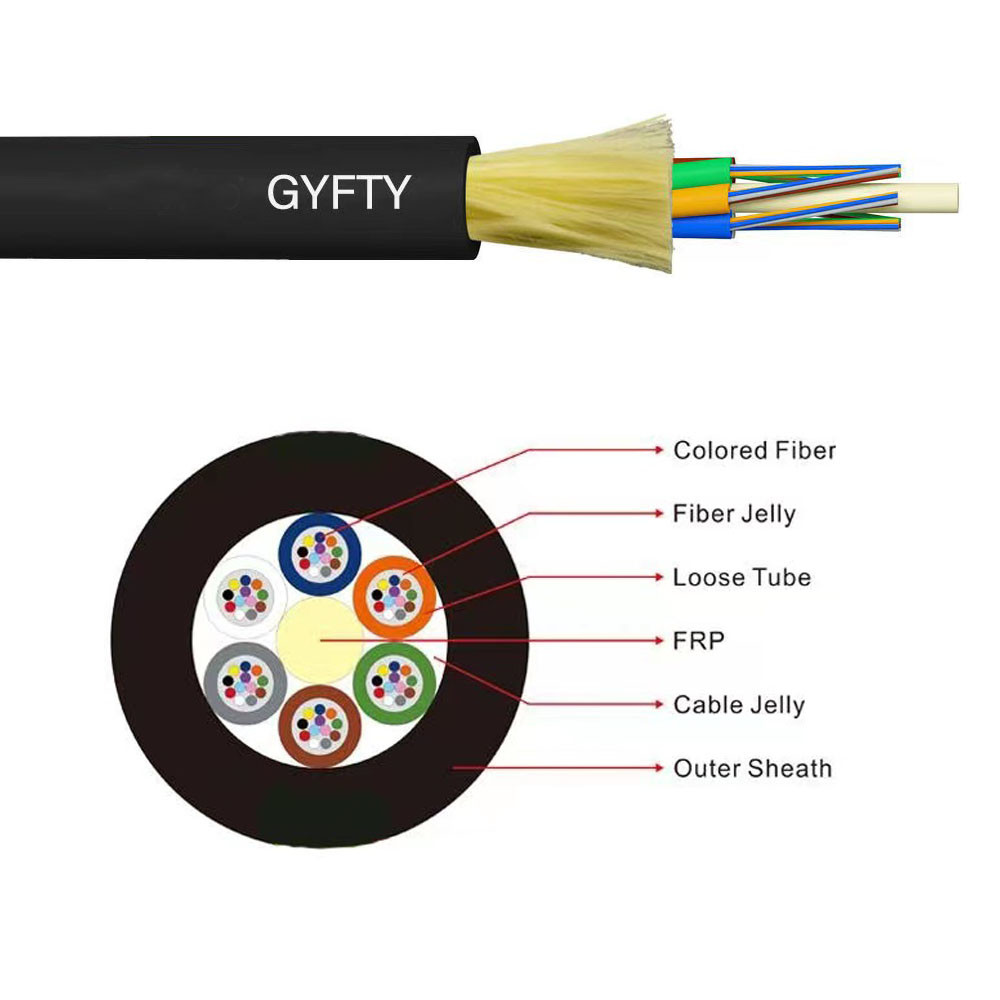

उत्पाद विवरण
Strong mechanical performance and excellent temperature resistance
Water-blocking, high-strength loose tube to protect fibers
Optical fibers filled with special gel for added protection
PE outer sheath with UV resistance and anti-compression properties
Lightweight, small diameter, easy for installation and overhead/duct/direct burial use
Non-metallic design, safe for lightning-prone or high-voltage areas
Single Mode: OS2 9/125 G652D / G657A1 / G657A2
Multimode: OM1 62.5/125, OM2 50/125, OM3 10G, OM4 10G (other types available on request)
Power transmission lines and utility poles
Lightning-intensive areas
Outdoor backbone network / FTTH projects
Duct, aerial, or direct burial installations
Optical Characteristics
| Items | Unit | Specification | |
| G652D | |||
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | |
| Cladding Diameter | um | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | um | ≤0.5 | |
| Coating Diameter | um | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | um | ≤12 | |
| Cable Cutoff Wavelength | nm | acc≤1260 | |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |
Technical Parameters
| Fiber Count |
Diameter (MI) |
Weight (KG/KMI) |
Min.Bend Radius | Mlin.Tension (N) |
Crush (N/100MMl) |
|||
| Static | Dynamic | Long Term | Short Term | Long Term | Short Term | |||
| 2-30 | 8.8 | 88 |
10
|
20
|
1500 | 800 | 1000 | 500 |
| 32-36 | 9.0 | 95 | 1500 | 800 | 1000 | 500 | ||
| 38-60 | 9.2 | 98 | 1500 | 800 | 1000 | 500 | ||
| 62-72 | 9.5 | 105 | 1500 | 800 | 1000 | 500 | ||
| 74-96 | 10.5 | 118 | 1500 | 1000 | 1000 | 500 | ||
| 98-120 | 11.8 | 145 | 2000 | 1500 | 1000 | 500 | ||
| 122-144 | 14.2 | 165 | 2000 | 1500 | 1000 | 500 | ||
| 146-216 | 16.3 | 225 | 2000 | 1500 | 1000 | 500 | ||
| 218-240 | 18.5 | 305 | 2000 | 1500 | 1000 | 500 | ||
| 242-288 | 22.7 | 395 | 2500 | 2000 | 1000 | 500 | ||
Tips: all the data ablove is reference to our factory, pls contact Philip for more details , WA:008613422342788

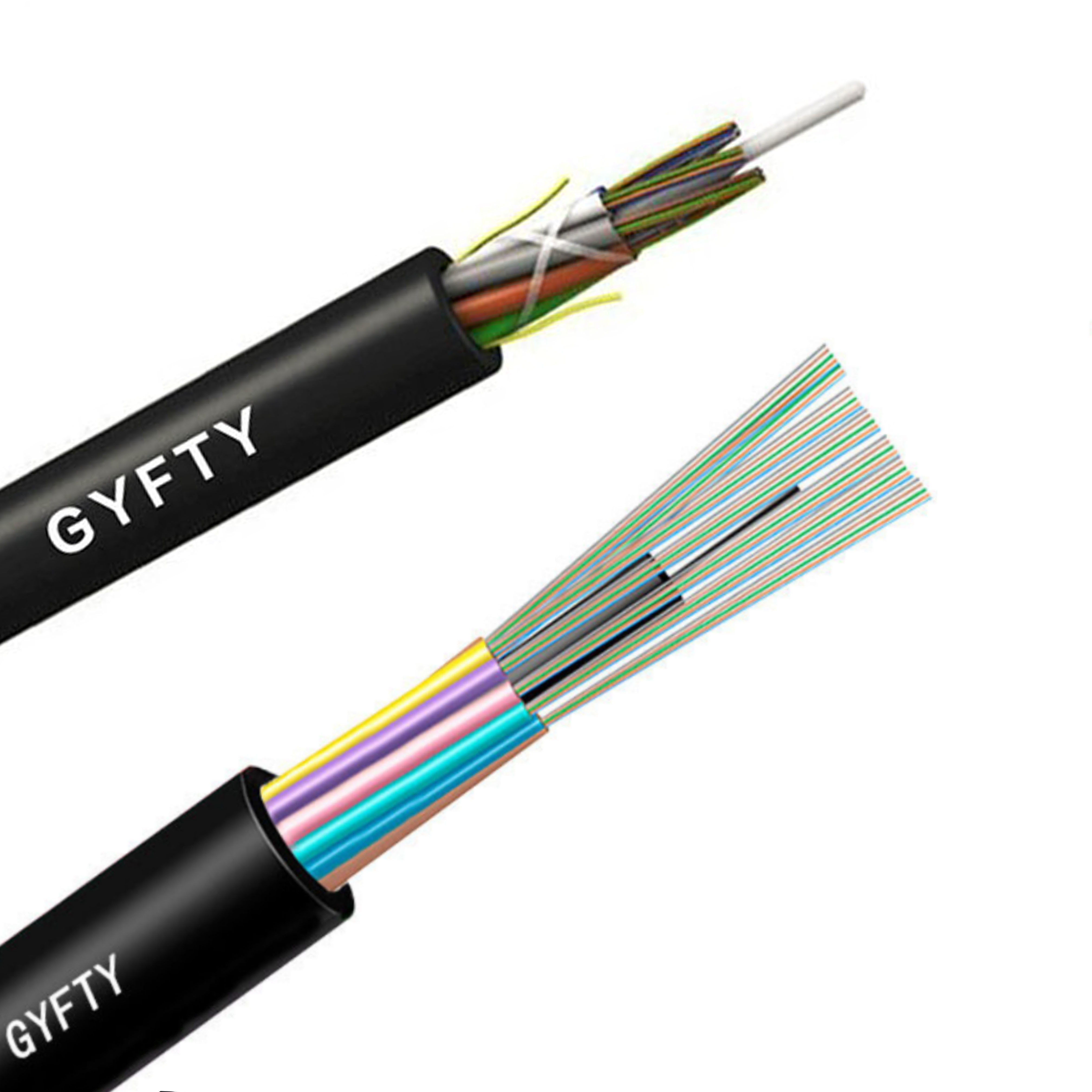

Detail product pictures
Picture shows about the GYFTY-48 C
Q1: Are you a factory?
Yes. We are a direct manufacturer of fiber optic cables, MPO breakout cables, and patch cords, with exports to Europe, South America, and other regions.
Q2: What are your main products?
Outdoor/indoor fiber optic cables, FTTH drop cables, ADSS cables, armored indoor patch cords, and SC/LC/FC/ST/MTP/MPO optical patch cords.
Q3: What is the warranty for your products?
We provide a 20-year warranty for our fiber optic cables.
Q4: Do you have certifications for raw materials?
Yes. All raw materials are sourced from ISO9001 and ROHS-certified suppliers.
