GYTC8S Figure 8 Fiber Optic Cable 48/96 Core Outdoor Singlemode G652D
GYTC8S Figure 8 Fiber Optic Cable 48/96 Core Outdoor Singlemode G652D
GYTC8S Figure 8 Fiber Optic Cable 48/96 Core Outdoor Singlemode G652D GYTC8S Figure 8 Fiber Optic Cable 48/96 Core Outdoor Singlemode G652D GYTC8S Figure 8 Fiber Optic Cable 48/96 Core Outdoor Singlemode G652D GYTC8S Figure 8 Fiber Optic Cable 48/96 Core Outdoor Singlemode G652D
अब से संपर्क करें

GYTC8S Figure 8 Fiber Optic Cable 48/96 Core Outdoor Singlemode G652D

न्यूनतम आदेश मात्रा : 1 किलोमीटर पैकेजिंग विवरण : लकड़ी का ड्रम
प्रसव के समय : 2-5 दिन भुगतान शर्तें : एल/सी, डी/ए, डी/पी, टी/टी, वेस्टर्न यूनियन, मनीग्राम
आपूर्ति की क्षमता : 8000 किलोमीटर प्रति माह
उत्पत्ति के प्लेस: ग्वांगडोंग, चीन ब्रांड नाम: JQ/OEM/Customize
प्रमाणन: CE/ISO9001/RoHS/FCC मॉडल संख्या: Gytc8s

विस्तार जानकारी
मॉडल संख्या: GYTC8S-48CORE प्रकार: आउटडोर फाइबर ऑप्टिक केबल
उत्पत्ति के प्लेस: ग्वांगडोंग, चीन तंतु -प्रकार: G652D सिंगल मोड या आपके अनुरोध के रूप में
रंग: अनुकूलित जैकेट: PE, MDPE, LSZH, PVC, HDPE
कंडक्टर की संख्या: 1 या 2 या 4 या 6 या 8 या 12
प्रमुखता देना:

Figure 8 fiber optic cable 48 core

,

Outdoor singlemode fiber cable G652D

,

96 core figure 8 optical cable

उत्पाद विवरण

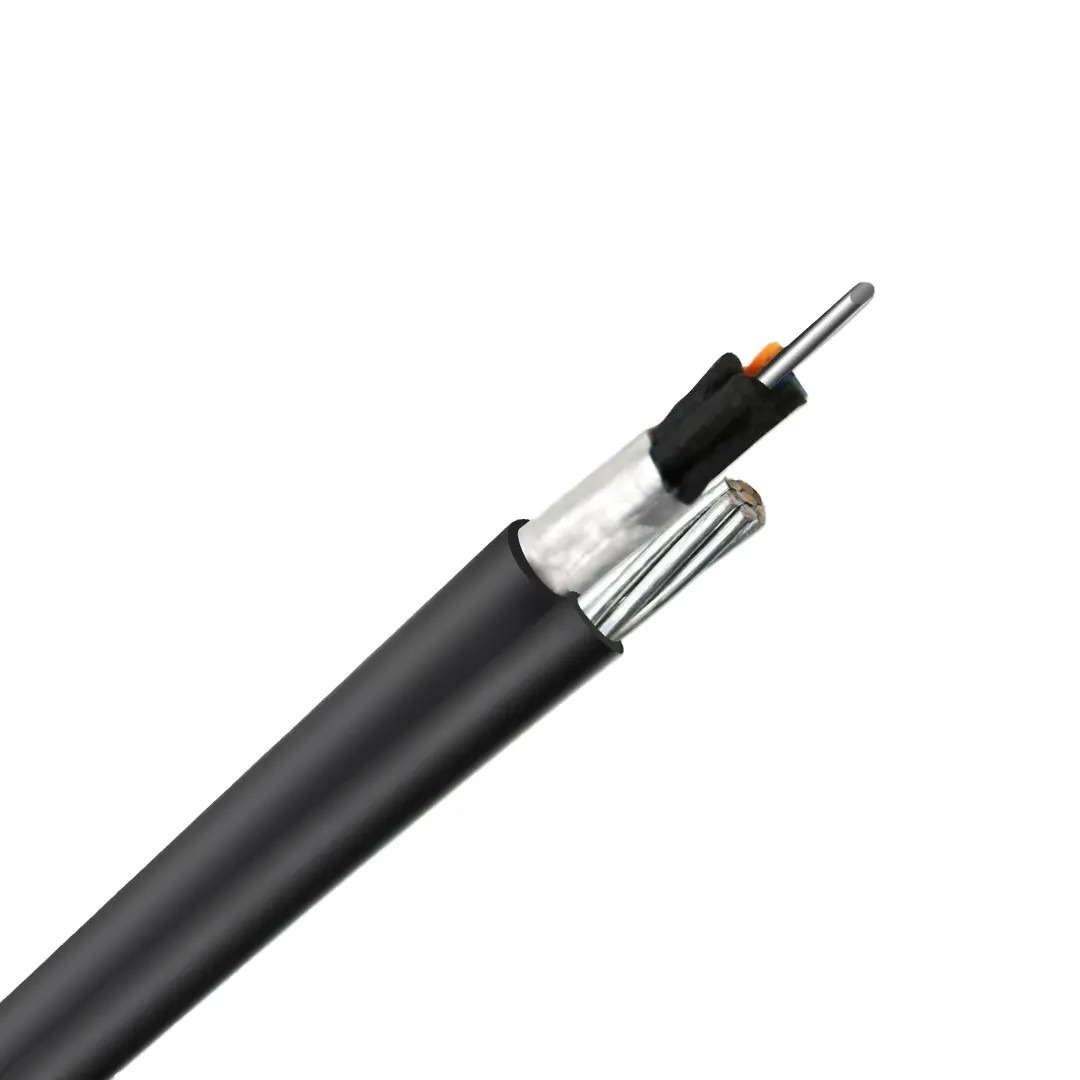

GYTC8S Optical Fiber Cable

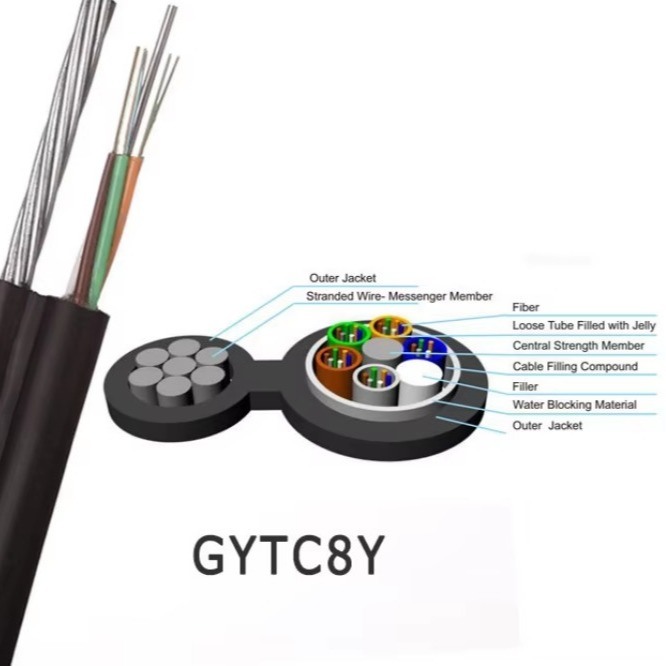

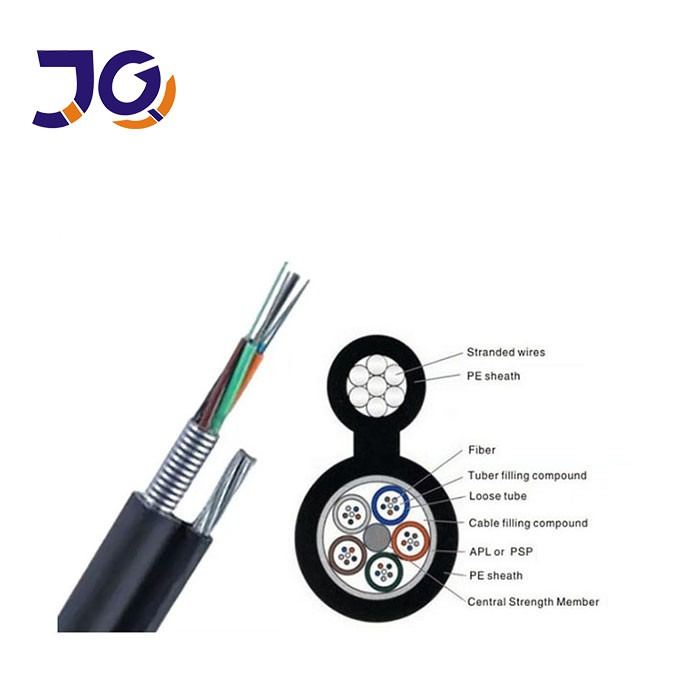

A self-supporting aerial cable with 1–144 fibers, stranded loose tube design, steel messenger, corrugated steel armor, and UV-resistant PE sheath. Water-blocking gel protects fibers, while the central steel member ensures high tensile strength. Ideal for long-distance telecom, FTTH, LAN/WAN, and power line communication.



Applications:

  • Outdoor aerial and long-span installations

  • Backbone and metro network transmission

  • LAN, WAN, and data center connectivity

  • FTTH/FTTx subscriber access

  • Junction and distribution networks

  • CATV, broadband, and computer networks

Product Parameters:

Model fiber cores OD (outer dia.)

Weight

kg/km

Tensile

Strength Long

/Short Term

Crush Resistance

Long/Short Term N

/100mm

Bending Radius

Static

/Dynamic mm
GYTC8S 12-288 7-20mm 70-300 3500/7000N 300/1000 15D/30D


Specification:

item value
Model Number GYTC8S
Type Outdoor Fiber Optic Cable
Place of Origin Guangdong,China
Brand Name jiqian
Structure Multi loose tube
Number of Conductors ≥ 10
Fiber count 2-144 Cores
Fiber Type G652D Single mode or as your request
Central strength member Steel wire
Loose tube Jelly filled
Loose tube PBT
Jacket Sheath PE
Color Black or as your need
Package Plywood Reel/customized
Application Aerial,Overhead
operating temperature -40 to +70
Certification CE/ROHS/ISO9001



GYTC8S Figure 8 Fiber Optic Cable 48/96 Core Outdoor Singlemode G652D 0

Optical Characteristics:

  G.655 50/125μm 62.5/125μm
G.652
Attenuation '@850nm     ≤3.0 dB/km
(+20℃) '@1300nm     ≤1.0 dB/km
  '@1310nm ≤0.34 dB/km ≤0.40 dB/km
  '@1550nm ≤0.21 dB/km ≤0.23 dB/km
  '@850nm     ≥500 MHz·km
  '@1300nm     ≥1000 MHz·km
Numerical Aperture     0.200±0.015NA



GYTC8S Figure 8 Fiber Optic Cable 48/96 Core Outdoor Singlemode G652D 1

GYTC8S Figure 8 Fiber Optic Cable 48/96 Core Outdoor Singlemode G652D 2

Certification:

GYTC8S Figure 8 Fiber Optic Cable 48/96 Core Outdoor Singlemode G652D 3



FAQ

1. Who are we?
We are a professional fiber optic cable manufacturer based in Guangdong, China, founded in 2017. Our main markets include Africa (33%), South America (17%), Western Europe (17%), the Middle East (17%), Southeast Asia (9%), and South Asia (7%). We have a skilled team of 11–50 employees.



2. How do we ensure product quality?

  • Pre-production samples are provided for confirmation before mass production

  • 100% final inspection is carried out prior to shipment

3. What products do we offer?
Outdoor/indoor fiber optic cables, FTTH drop cables, communication cables, and related accessories.



4. What services are available?

  • Delivery terms: FOB, EXW

  • Payment methods: T/T, L/C, D/P, D/A, Credit Card, PayPal, Western Union, Cash

  • Supported currencies: USD, CNY

  • Supported languages: English, Chinese

5. What is the minimum order quantity (MOQ)?
Our standard MOQ is 1KM, trial orders are welcome.



6. Can I request samples?
Yes, we provide free samples; customers only need to cover the freight cost.



7. Do you offer OEM/ODM service?
Yes, our engineering team supports OEM/ODM customization to meet your project needs.



8. What is your delivery time?
Normally 3–7 working days after order confirmation, depending on quantity.
